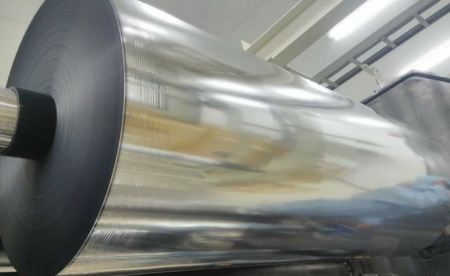

薄膜雙面鍍鋁
■ Description
Roll coat evaporation equipment with induction heated crucible technology.
這是應用感應加熱式坩堝技術的卷筒輥涂蒸發設備。
Implementing a pinhole-free system without compromising the uniformity of the
membrane thickness and web speed.
實現無網狀系統,同時不影響 薄膜厚度和網速。
Core Technology
● Vacuum Chamber 真空腔體
- Designed to prevent bending of the chamber and to facilitate maintenance
(設計用于防止腔室彎曲和便于維護)
- Rectangular or Round vacuum chamber design. (矩形或圓形真空室設計。)
- High speed and stable operation for efficient production.(高速穩定運行,高效生產)
● Control system features : Mitsubishi integrated control system, Profibus, human-computer interface,
AC servo rolls motors constant tension web winding.
● Vacuum system features : Dual zone chamber, Improve quality by maximizing pumping speed and
eliminating stable outgassing.
真空系統特點:雙區室,通過比較大化抽氣速度和消除穩定的出氣來提高質量。
Cooling System 冷卻系統
Cooling Temperature : -20℃
It protects the film from the temperature generated during deposition.
它保護薄膜不受沉積過程中產生的溫度影響
Having core cooling design technology inside the drum.
滾筒內有中心冷卻設計技術。
產品詳情
ITEM |
Description |
Web Speed |
1~9m/sec |
Max. Width |
1600mm |
Max. roll diameter |
800mm |
Water consumption(m3/h) |
50 |
Base pressure |
≤ 3.0 × 10-6 torr |
Vent time |
Within 20minutes |
Electricity consumption |
360kw |
